Descripción

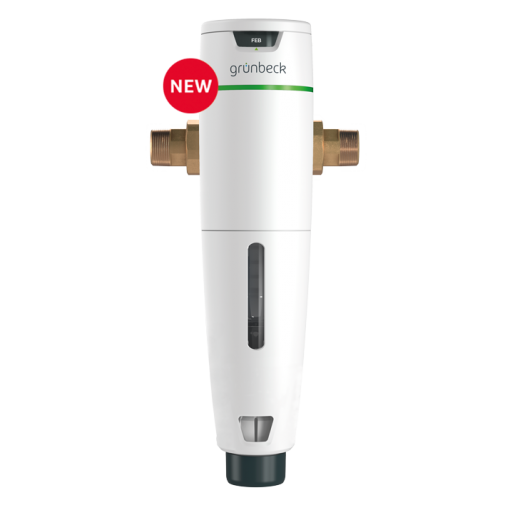

Filtro de Agua GRÜNBECK PureliQ: A / PureliQ:A – the automatic backwash filter
En Español
El filtro automático pureliQ: A está diseñado según las estipulaciones de DIN EN 13443-1 y DIN 19628 y está destinado a la instalación en la tubería de agua potable según DIN EN 806-2 (instalación inmediatamente aguas abajo del contador de agua).
Protege las tuberías de agua y las partes del sistema de transporte de agua conectadas contra las alteraciones y el daño por corrosión debido a impurezas (partículas) no disueltas tales como partículas de óxido o arena. El agua potable no filtrada fluye al filtro desde el lado de entrada y luego desde el exterior a través del elemento de filtro y hacia la salida de agua pura. Por lo tanto, se retienen partículas extrañas> 100 μm de tamaño. Dependiendo de su tamaño y peso, las partículas extrañas se adhieren al elemento filtrante o caen directamente dentro del cilindro del filtro. El controlador libera automáticamente el retrolavado según la configuración. Las configuraciones posibles para los intervalos de retrolavado son 7, 30, 60 y 90 días. Sin embargo, se puede liberar un retrolavado manual en cualquier momento.
- Instalado en un santiamén: los componentes premontados permiten una instalación en cuestión de minutos
- Ergonómico: instalación conveniente en todo tipo de situaciones de montaje gracias a una brida de conexión tipo clic giratorio
- Potente: la tecnología Vortex de Grünbeck para la limpieza de filtros sin residuos mediante turbulencias de agua
- Protegido: diseño bien pensado con ventana de inspección para proteger contra la luz ultravioleta
- Diseño orgánico suave
- Diámetros de conexión: ¾ «, 1», 1 ¼ «
- Presión nominal: PN 16
- Agua / temperatura ambiente: 30 ° C / 40 ° C
- Tamaño de poro: 100 μm
Requerimientos de instalación
Observe las directivas de instalación locales, las pautas generales y las especificaciones técnicas.
El sitio de instalación debe ser a prueba de heladas y garantizar la protección del filtro contra productos químicos, tintes, solventes, vapores y luz solar directa.
El sitio de instalación debe ser de fácil acceso para fines de mantenimiento.
Volumen de suministro
- Filtro automático pureliQ: A, completo con elemento de filtro y brida de conexión premontada
- Conexión de tornillo del medidor de agua
- Juntas
- Operación manual
CONOCIMIENTO DEL AGUA
La norma DIN EN 806-5, A estipula que, por motivos de higiene, el elemento del filtro debe reemplazarse cada 6 meses para garantizar la capacidad óptima de filtración y la higiene del sistema de filtro.
In English
The automatic filter pureliQ:A is designed for the filtration of drinking and industrial water.
Convenient filtration thanks to the automatic filter pureliQ:A.
A motor unit automatically takes care of the time-controlled backwash for you.
pureliQ:A: It couldn’t be more convenient.
The automatic filter pureliQ:A is perfectly suited for all fields of application. For every pureliQ filter is developed with due diligence and tailored to the prevailing needs – designed for today’s as well as for future requirements.
The filters can be used for positive pressure and negative pressure applications. A backwash and the adjustment of the after-pressure on the withdrawal side, however, are only possible when applied in the positive pressure range.
The automatic filter pureliQ:A is designed according to the stipulations of DIN EN 13443-1 and DIN 19628 and intended for the installation in the drinking water pipe according to DIN EN 806-2 (installation immediately downstream of the water meter).
It protects the water pipes and connected water-carrying system parts from disturbances and corrosion damage due to undissolved impurities (particles) such as rust particles or sand. The unfiltered drinking water flows into the filter from the inlet side and then from the outside in through the filter element and to the pure water outlet. Thus, foreign particles > 100 µm in size are retained. Depending on their size and weight, the foreign particles either stick to the filter element or they fall straight down into the filter cylinder. The controller automatically releases the backwash as per the setting. Possible settings for the backwash intervals are 7, 30, 60 and 90 days. A manual backwash can be released at any time, however.
- Installed in a jiffy: Pre-assembled components allow for an installation within mere minutes
- Ergonomic: Convenient installation in all kinds of mounting situations thanks to a rotatable click-type connection flange
- Powerful: Grünbeck’s Vortex technology for residual-free filter cleaning by means of water turbulences
- Protected: Well thought-out design with inspection window to protect against UV light
- Smooth organic design

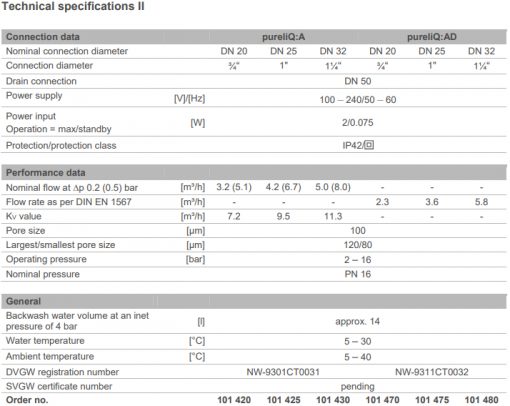

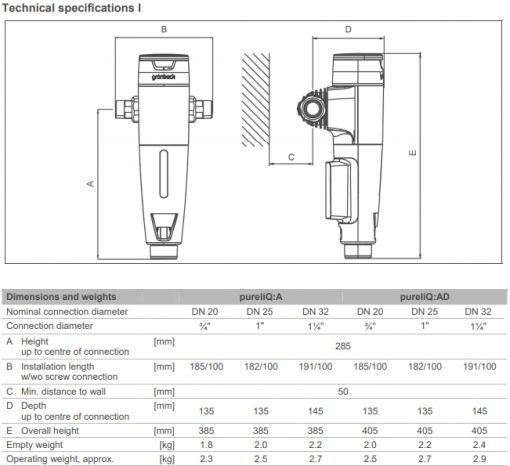

- Connection diameters: ¾“, 1“, 1 ¼“
- Nominal pressure: PN 16
- Water/ambient temperature: 30 °C/40 °C
- Pore size: 100 μm
Installation requirements
Please observe local installation directives, general guidelines and technical specifications.
The installation site must be frost-proof and ensure the filter’s protection from chemicals, dyes, solvents, vapours and direct sunlight.
The installation site must be easily accessible for maintenance purposes.
Scope of supply
- Automatic filter pureliQ:A, complete with filter element and pre-assembled connection flange
- Water meter screw connection
- Gaskets
- Operation manual
WATER KNOWLEDGE
DIN EN 806-5, A stipulates that for hygienic reasons, the filter element has to be replaced every 6 months in order to ensure optimum filtration capacity and hygiene of the filter system.
