Descripción

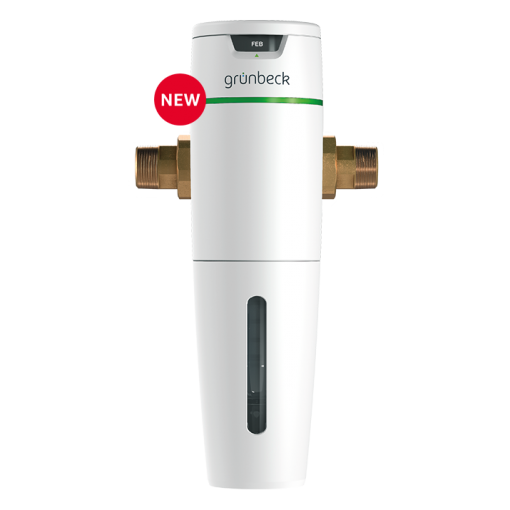

Filtro de Agua GRÜNBECK PureliQ: K / Fine filter pureliQ:K
En Español
El filtro fino pureliQ: K está diseñado según las estipulaciones de la norma DIN EN 13443-1 y está destinado a ser instalado en la tubería de agua potable según DIN EN 806-2 (instalación inmediatamente aguas abajo del contador de agua).
- Lickety-split: instalación en cuestión de minutos gracias a los componentes premontados
- Ergonómico: brida de conexión giratoria tipo clic para una instalación conveniente en todo tipo de posiciones de montaje
- Protegido: diseño bien pensado con ventana de inspección para proteger contra la luz ultravioleta
- Diseño orgánico suave
- Diámetros de conexión: ¾ «, 1», 1 ¼ «
- Presión nominal: PN 16
- Agua / temperatura ambiente: 30 ° C / 40 ° C
- Tamaño de poro: 100 μm
Requerimientos de instalación
Observe las directivas de instalación locales, las pautas generales y las especificaciones técnicas.
El sitio de instalación debe ser a prueba de heladas y garantizar la protección del filtro contra productos químicos, tintes, solventes, vapores y luz solar directa. El sitio de instalación debe ser de fácil acceso para fines de mantenimiento.
Volumen de suministro
- Filtro fino pureliQ: K, completo con elemento de filtro y brida de conexión de tipo clic premontada
- Conexión de tornillo del medidor de agua
- focas
- Operación manual
Consumibles
Elemento de filtro A17 / 1 100 μm
CONOCIMIENTO DEL AGUA:
La norma DIN EN 806-5, A estipula que, por motivos de higiene, el elemento del filtro debe reemplazarse cada 6 meses para garantizar la capacidad óptima de filtración y la higiene del sistema de filtro.
In English
he fine filter pureliQ:K is designed for the filtration of drinking and industrial water. Solid matter such as rust particles or sand grains may cause serious corrosion damage in pipes and fittings. The fine filter
pureliQ:K makes sure that it does not come to that. It represents the important first stage of water treatment and effectively protects water installations in households, trade and industry from malfunctions and corrosion damage.
The unfiltered drinking water flows into the filter from the inlet side and then from the outside in through the filter element and to the pure water outlet.
Depending on the filter element, foreign particles the size of > 5 µm, 20 µm, 50 µm, 100 µm (DVGW version) are thus retained.
Our new fine filter pureliQ:K ensures reliable filter performance for a long time by simply replacing the filter element.
The fine filter pureliQ:K is designed according to the stipulations of DIN EN 13443-1 and intended for installation into the drinking water pipe according to DIN EN 806-2 (installation immediately downstream of the water meter).
- Lickety-split: installation within mere minutes thanks to pre-assembled components
- Ergonomic: rotatable click-type connection flange for convenient installation in all kinds of mounting positions
- Protected: well-thought-out design with inspection window to protect against UV light
- Smooth organic design
- Connection diameters: ¾“, 1“, 1 ¼“
- Nominal pressure: PN 16
- Water/ambient temperature: 30 °C/40°C
- Pore size: 100 μm
Installation requirements
Please observe local installation directives, general guidelines and technical specifications.
The installation site must be frost-proof and ensure the filter’s protection from chemicals, dyes, solvents, vapours and direct sunlight. The installation site must be easily accessible for maintenance purposes.
Scope of supply
- Fine filter pureliQ:K, complete with filter element and pre-assembled click-type connection flange
- Water meter screw connection
- Seals
- Operation manual
Consumables
Filter element A17/1 100 μm
WATER KNOWLEDGE:
DIN EN 806-5, A stipulates that for hygienic reasons, the filter element has to be replaced every 6 months in order to ensure optimum filtration capacity and hygiene of the filter system.
